2023 Yamaha Wolverine RMAX4 1000 R-Spec

Stock #0PA102218
MSRP: $26,399 USD
Discount: $7,400
Your Price: $18,999 USD
Check Availability

Hi, my name is and I'm interested in this 2023 Yamaha Wolverine RMAX4 1000 R-Spec . I'm in the area and you can reach me at or by phone at
  • Powerful 999cc Parallel Twin Engine
    The Wolverine RMAX4 1000 R-Spec delivers class-leading power and smooth performance thanks to its potent 999cc DOHC eight-valve parallel-twin engine, featuring legendary Yamaha reliability.
  • An Imposing Figure with Next Generation Style
    The Wolverine RMAX4 1000 R-Spec wraps next-level capability in imposing style, highlighted by an aggressive front end look, rugged tires and a purposeful stance. The stealthy front LED headlights and "evil eye" marker lights give this new generation a distinctive look on the trail, and the LED taillight, brake light, and reverse light provide added visibility from behind. With its eye-catching colors, the RMAX's appearance is only rivaled by its trail-dominating performance.
  • Advanced, Comfort-Focused Suspension
    The advanced heavy-duty suspension is designed to provide maximum articulation in low speed situations, a balanced feel when trail riding and maximum bottoming resistance at higher speeds. The wide-arc A-arms paired with the FOX® 2.0 QS3 shocks deliver 14.2-inches of travel up front and 13.3-inches of travel in the rear. The FOX® 2.0 QS3 shocks can be easily switched—without tools—between three custom positions to enhance comfort during relaxed driving, increase damping for normal trail riding and maximize damping during sport driving.
  • Roomy Four-Person Cabin
    The Wolverine RMAX4 1000 R-Spec offers comfortable, secure seating for four full-sized adults with comfortable handholds and six-position seat belts for each seat. The second row is raised for excellent visibility, so everyone gets a great view of their surroundings.
  • Versatility for Cargo
    The Wolverine RMAX4 1000 R-Spec is one of the most versatile machines in the two-row Side-by-Side market. In addition to its ability to comfortably seat up to four adults including cargo, the Wolverine RMAX4 1000 R-Spec features an ingenious storage system for flexibility. By folding and sliding the rear seats forward, the rear area expands to securely transport up to 600 pounds of cargo, and includes multiple steel tie-down points. The Wolverine RMAX4 1000 R-Spec also features a built in 2-inch receiver to tow a full 2,000 pounds when needed.
  • Status:
    New
  • Vehicle:
    2023 Yamaha Wolverine RMAX4 1000 R-Spec
  • VIN:
    5Y4AN40Y0PA102218
  • Model Number:
    YXF10WRAPS
  • Color:
    Cyan / Yamaha Black
  • Stock Number:
    0PA102218
  • Title:
    Clear
  • Location:
    Sunrise Marine & Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    10
  • Front Brake Diameter (mm):
    255
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    9.6
  • Rear Brake Diameter (mm):
    244.5
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Command™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.66
  • Bore (mm):
    93
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    11.2
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    48
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.89
  • Stroke (mm):
    73.5
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • CV Boot Cover:
    Yes
  • Exhaust Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    4
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    272.2
  • Bed Capacity (lbs.):
    600
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Adjustment Type:
    Spring Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Brand Name:
    Fox®
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    14.2
  • Front Travel (mm):
    360.7
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox®
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    13.3
  • Rear Travel (mm):
    337.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.49
  • Fuel Capacity (gal):
    9.2
  • Fuel Capacity (l):
    34.8
  • Ground Clearance (in):
    13.4
  • Ground Clearance (mm):
    340.4
  • Height (in):
    83.1
  • Height (mm):
    2110.7
  • Length (ft):
    10.68
  • Length (ft/ft):
    10
  • Length (ft/in):
    8.1
  • Length (in):
    128.1
  • Length (mm):
    3253.7
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    19.7
  • Wet Weight (kg):
    917.2
  • Wet Weight (lbs):
    2022
  • Wheelbase (in):
    90.2
  • Wheelbase (mm):
    2291.1
  • Width (in):
    66
  • Width (mm):
    1676.4

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

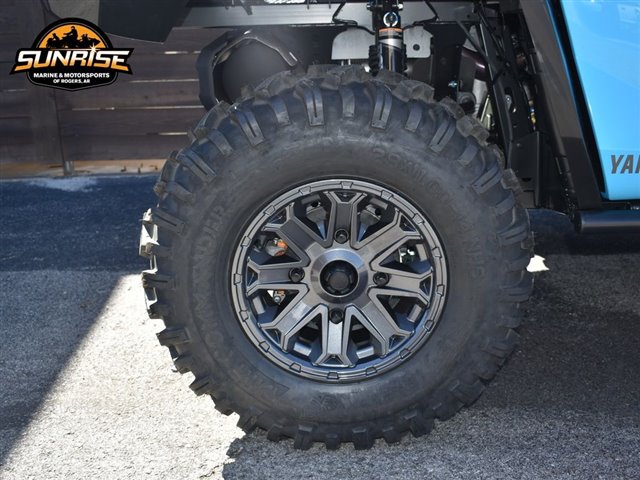

  • Front Tire (Full Spec):
    GBC® Dirt Commander® AT29 X 9-14
  • Front Tire Diameter (in):
    29
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    GBC® Dirt Commander® AT29 X 11-14
  • Rear Tire Diameter (in):
    29
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    GBC
  • Tread Type:
    All Terrain
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
