2023 Kawasaki Mule PRO-FXT Ranch Edition

Stock #9PB504270
MSRP: $25,299 USD
Discount: $1,100
Your Price: $24,199 USD

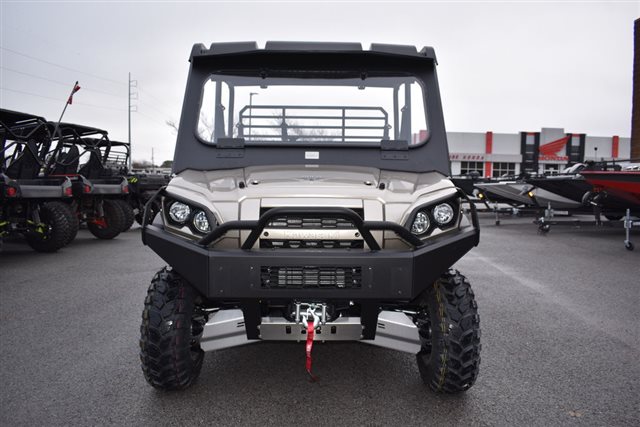

Pricing Notes: Added Accessories: Front Windshield, Bed Extender, Brush Guard, CV Guards, Floor Mats, Headlight Guards, Rear View Mirror, Tail Light Guard!
Check Availability
Hi, my name is and I'm interested in this 2023 Kawasaki Mule PRO-FXT Ranch Edition . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2023 Kawasaki Mule PRO-FXT Ranch Edition
  • Model Number:
    KAT820EPFNN
  • Color:
    Metallic Titanium
  • Stock Number:
    9PB504270
  • Title:
    Clear
  • Location:
    Sunrise Marine & Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    8.3
  • Front Brake Diameter (mm):
    212
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    8.3
  • Rear Brake Diameter (mm):
    212
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    2.83
  • Bore (mm):
    72
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (cc):
    812
  • Displacement (ci):
    49.5
  • Engine Brand Name:
    Kawasaki
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    In-Line
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    48
  • Horsepower (kW):
    35
  • Horsepower RPM:
    5500
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.62
  • Stroke (mm):
    66.5
  • Torque (Ft Lbs):
    48
  • Torque (Nm):
    65
  • Torque RPM:
    3500
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    12

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Frame:
    Steel
  • Radiator Guard:
    Yes

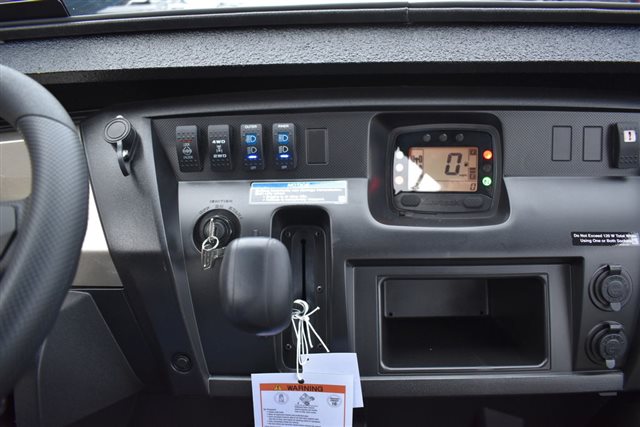

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

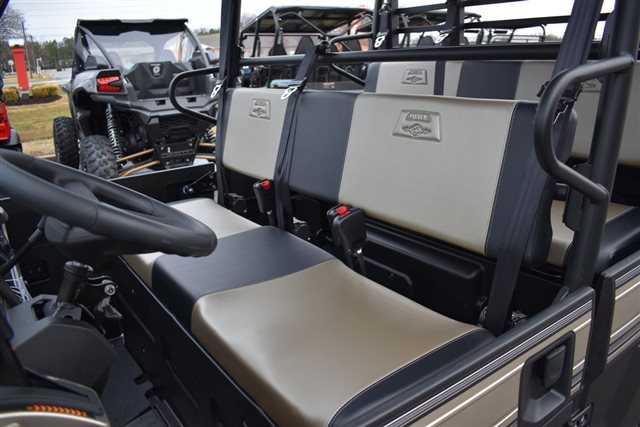

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

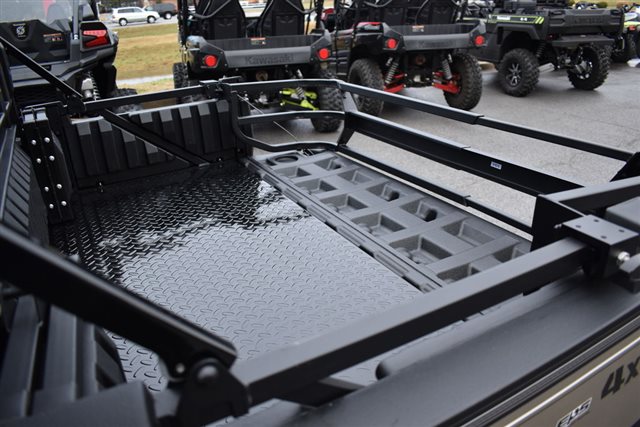

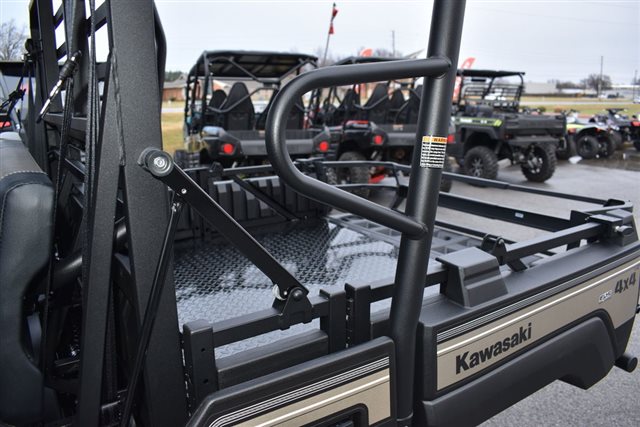

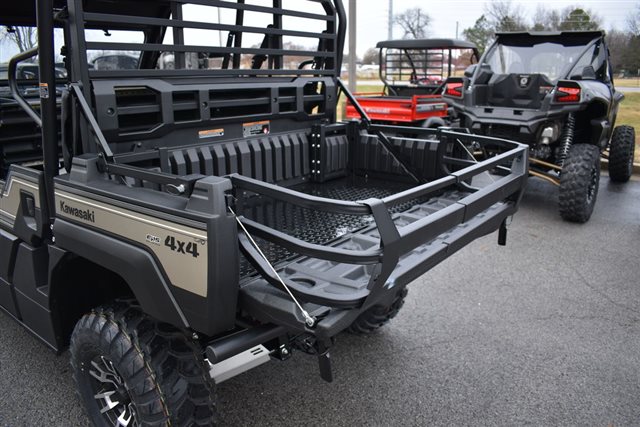

STORAGE

  • Bed Capacity (kgs.):
    453
  • Bed Capacity (lbs.):
    999
  • Bed Height (in):
    11
  • Bed Height (mm):
    279.4
  • Bed Length (in):
    42.7
  • Bed Length (mm):
    1084.6
  • Bed Volume (ft3):
    14.6
  • Bed Volume (m3):
    0.4
  • Bed Width (in):
    53.7
  • Bed Width (mm):
    1364
  • Cargo Bed Material:
    Steel
  • Cargo Bed Tilt:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    8.7
  • Front Travel (mm):
    221
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    8.7
  • Rear Travel (mm):
    221

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    7.9
  • Fuel Capacity (l):
    29.9
  • Ground Clearance (in):
    10
  • Ground Clearance (mm):
    254
  • Height (in):
    79.5
  • Height (mm):
    2019.3
  • Length (ft):
    11.3
  • Length (ft/ft):
    11
  • Length (ft/in):
    3.6
  • Length (in):
    135.6
  • Length (mm):
    3444.2
  • Payload Capacity (kgs):
    733.2
  • Payload Capacity (lbs):
    1616.3
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    16
  • Wet Weight (kg):
    894
  • Wet Weight (lbs):
    1971.3
  • Wheelbase (in):
    92.3
  • Wheelbase (mm):
    2344.4
  • Width (in):
    64
  • Width (mm):
    1625.6

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Warn®

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    26
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
